Warehouse Electric Hydraulic Scissor Lift Table with Low Profile Lift Mechanism Design

Model NO. : ML-0200045

Lift Mechanism : Scissor Lift

Carrying Capacity : 2000kg

Moves : Stationary

Driven Type : Hydraulic

Running Mode : Stationary

Certification : GS, CE, ISO 9001

Lifting Height : 606mm

Lifting Time : 18s

Transport Package : Wooden Pallet and Steel Pallet, Wooden Case

Specification : 1700X1270mm

Trademark : Marco

Origin : China

HS Code : 84289090

Production Capacity : 1000

Contact Now

Marco Low-profile lift table adopts flat iron as the structure of scissors arm. The lowest own height is 80mm. It is an economical material processing equipment and can be fixed directly to the ground. Widely used in production line, logistics sorting system and independent standing operating platform outside the production line, to create a human-friendly working environment for workers.
There are three types based on top shape: whole platform, U shape and E shape. The max load capacity is 1000KG

Model No.	ML-0200045	Capacity	1800kg
Platform size	1700X1270mm	Base Frame	1855X1872mm
Min. Height	16mm	Lifting Height	606mm
Model Type	stationary	Lift Time	/
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Trademark	Marco	HS Code	84289090
Orgin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834,	Design standard	EN1570-1-2011

Warehouse Electric Hydraulic Scissor Lift Table with Low Profile Lift Mechanism Design

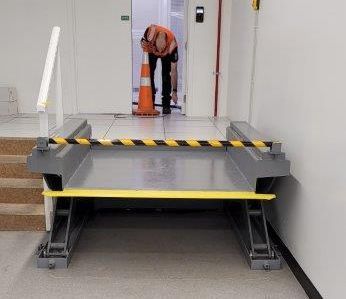

Warehouse Electric Hydraulic Scissor Lift Table with Low Profile Lift Mechanism Design Images
